Guangzhou Western Packing Co., Ltd. yog ib qho ntawm cov tuam txhab kev paub ntau tshaj plaws thiab cov chaw muag khoom ntawm cov hnab ntim khoom ntim tshuab hauv Suav teb. Peb sov siab txais tos koj mus yuav qhov zoo tshaj plaws stick sachet packet cartoning tshuab ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Peb kuj txais customized txiav txim.

Khoom Description

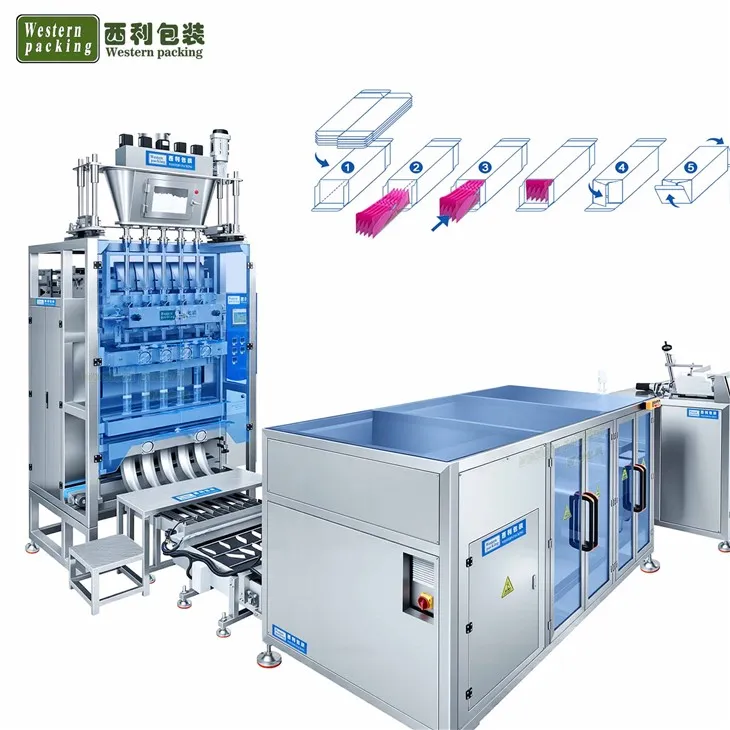

Lub Tshuab Stick Sachet Packet Cartoning Tshuab yog ib qho kev daws teeb meem zoo uas tsim los rau kev ntim ntau yam ntawm cov hnab me me, strip packs, thiab ib qho - pab pob ntawv. Tsim los rau kev lag luam xws li zaub mov, tshuaj, tshuaj noj, thiab kev saib xyuas tus kheej, lub tshuab no txhawb nqa tag nrho cov txheej txheem ntim khoom-los ntawm kev pub mis thiab suav rau kev sib sau ua ke, ntim khoom, ntim khoom, thiab lub thawv ntim khoom zaum kawg.

Ua nrog lub siab -kev ua tau zoo PLC tswj qhov system thiab tus neeg siv-tus phooj ywg HMI, lub tshuab muaj kev tswj xyuas meej, kev ua haujlwm yooj yim, thiab kev hloov kho sai rau ntau qhov sib txawv ntawm cov hnab ntim thiab cov thawv ntim khoom. Nws cov servo-tsav mechanisms ua kom muaj kev sib tw, muaj tseeb, thiab txhim khu kev qha, txawm tias nyob rau hauv kev kub ceev. Cov cuab yeej siv tus qauv tsim tso cai rau kev hloov pauv hloov tau yooj yim, ua kom muaj kev sib koom ua ke rau hauv cov kab ntau lawm.

Khoom nta

1. Ntaus kev ua haujlwm: Cov khoom yuav raug thauj mus rau hauv lub thawv raws li cov txheej txheem teev tseg. Lub tshuab kab paub txhua txoj haujlwm ntawm kev qhib lub thawv, ntim lub thawv, nplaum lub thawv, thiab muab lub thawv ntim rau tib lub sijhawm.
2. Flow daim ntawv: Thawv qhib lub thawv hauv qab molding → Khoom siv lub tshuab tsis siv neeg cartoning → Carton sealing → tiav cov zis

Khoom Parameters

Qauv	WP-480/680FB
Khoom npe	Kab rov tav Automatic Cartoning tshuab
Khoom loj	Raws li qhov xwm txheej tiag tiag
Sorting loj	10-200 hli
Ntim muaj peev xwm	Max 80thawv / min
Tshuab loj	3200 * 1200 * 1700 hli
Thawv ntev	130-230 hli
Lub thawv zoo yuav tsum tau	250-350 g / m² (raws li tus neeg thov kev thov)
Hwj chim	1.5KW (220V / 380V, 3PH, 50HZ)
Compressed Cua Ua Haujlwm Siab	>=0.6mpa
*Qhov Loj (L W * H)**	3800 X 1100 X 1900 mm
Qhov hnyav	1500 kg
Lub thawv ntim ceev	30-80 hnab / min
Box Dimension Range	(55-200) hli * (14-160) hli * (13-70) hli Tau customized raws li koj lub thawv duab thiab loj
Nta	1. Nyiv Omron PLC tswj 2. Nyiv Omron inverter 3. Nyiv Omron kov npo 4. Tsis siv neeg nres thaum lub tshuab overload 5. Tsis siv neeg tsis kam lees tsis muaj cov khoom ntim khoom thiab daim ntawv 6. Tsis siv neeg teeb meem tso saib, tswb thiab suav 7. Kev ua haujlwm ruaj khov, kev ua haujlwm yooj yim

Cov duab ntxaws

interface kev khiav hauj lwm qhov system cia li tso saib cov kev ua tau zoo tsis xws li cartoning ceev, kom muaj nuj nqis, thiab ua rau tsis ua hauj lwm.

box Stick Sachet Packet Cartoning Tshuab khoom qhov hluav taws xob

Cov khoom tau muab tso rau hauv lub thawv, thiab lub thawv tau ntim khoom; cov khoom tiav yog cov zis.

Cov khoom siv conveyor Thiab Box cia khoom

Cov khoom siv conveyor rub cov khoom rau hauv lub thawv tsim. thiab lub thawv cia khoom muab lub thawv rau hauv qhov chaw cia khoom.

box forming, pub, folding, kua nplaum txau, sealing

Lub khob nqus tsev cia li nqus lub thawv thiab ua lub thawv hom. Tom qab ntawd thawb cov khoom mus rau hauv lub tais sib txuas tsis tu ncua thaum lub tshuab ua haujlwm.

cartoner packaging machine

Lub tuam txhab qhia

Guangzhou Western Western Co., Limited tsim, muag, thiab kev pabcuam ntsug daim ntawv, sau, thiab lub raj mis -zoo li lub hnab ntim tshuab rau kev lag luam ntim. Peb lub lag luam thoob ntiaj teb suav nrog zaub mov, dej haus, nutraceutical, thiab tshuaj. Peb muab siab-ceev, nruam- cov khoom ntim ntim thiab ntim ntim tshuab. Thiab ntau lwm cov baggers ntsug uas ua ntau hom hnab hom-los ntawm lub hnab pyramid mus rau tsis xwm yeem- lub hnab zoo li tus- kho kom haum txhua yam koj xav tau.

Lub tuam txhab tau tsim ib pab neeg nrog cov kws tshaj lij kev ua haujlwm zoo thiab muaj kev paub txog kev pabcuam zoo, uas tuaj yeem muab cov neeg siv khoom paub meej, ib qho -tso tseg kev sab laj kev sab laj thiab tom qab- kev muag khoom muag.

Kev thaij duab nrog cov neeg siv khoom

Western Packing tau lees paub los ntawm ntau tus neeg siv khoom. Peb muaj cov neeg siv khoom uas peb tau ntsib hauv kev nthuav qhia, cov neeg siv khoom qhia los ntawm tib lub lag luam, thiab cov neeg siv khoom qhia los ntawm cov phooj ywg. Txhua tus neeg siv khoom los ntawm peb txoj kev ntseeg siab thiab kev txhawb nqa rau peb.

Cov duab hauv qab no yog cov lus pov thawj ntawm cov neeg siv khoom.
