Guangzhou Western Packing Co., Ltd. yog ib qho ntawm cov tuam txhab kev paub ntau tshaj plaws thiab cov chaw muag khoom ntawm granule tsis siv neeg ntim tshuab hauv Suav teb. Peb sov siab txais tos koj mus yuav cov khoom zoo granule tsis siv neeg ntim tshuab ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Peb kuj txais customized txiav txim.

Khoom Description

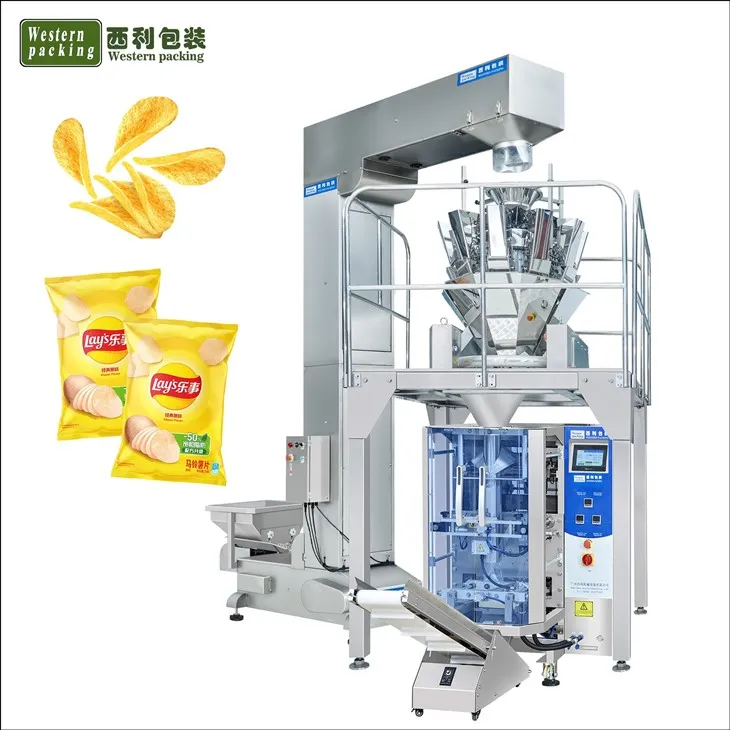

Granule Automatic Packing Machine yog ib qho khoom siv ntim khoom siv uas tsim los rau cov khoom siv granular. Nws koom ua ke siab - qhov hnyav hnyav, ntsuas qhov tseeb, tsis siv neeg lub hnab ua, txhaws, thiab sealing. Los ntawm ntau- lub taub hau ua ke qhov hnyav, lub tshuab tuaj yeem ua tiav ntau qhov hnyav thiab ua kom zoo dua lawv cov kev sib xyaw ua ke hauv lub sijhawm luv luv, ua tiav siab -precision thiab siab- kev ua tau zoo granule ntim ntau lawm.

Cov cuab yeej muaj cov qauv compact thiab ua haujlwm yooj yim. Lub PLC tswj qhov system thiab touchscreen interface ua qhov chaw teeb tsa, kev hloov kho cov zis, thiab kev saib xyuas kev ua txhaum intuitive thiab yooj yim. Lub tshuab tuaj yeem hloov kho rau ntau yam khoom siv granular, nrog rau cov khoom noj khoom haus, cov txiv hmab txiv ntoo qhuav thiab txiv ntoo, seasonings, nplej, yas granules, thiab cov khoom siv me me, ua tau raws li kev xav tau ntau yam.

Khoom Parameters

Qauv	wb 420b	wb 520b
Muaj peev xwm	35-60 hnab / min
Hnab qauv	Lub hnab hauv ncoo
Hnab loj	L 60-300mm W 60-200mm	L 100-350 mm, W 80-250 mm
Zaj duab xis dav	Max 420 hli	Max 520 hli
Kab rov tav sealer	Tsav los ntawm lub tog raj kheej
Tswj + HIM	PLC + Suav / Askiv interface kov npo
Kev siv cua	0.8 mps, 0.25 m³ / min	0.8 mps, 0.3 m³ / min
Hwj chim	1 Phase, 50 Hz, AC 220 V, / 3.0 KW	1 Phase, 50 Hz, AC 220 V / 4.0 KW
xaiv tau	Sab saum toj dai qhov Punching, Nitrogen them, gusset hnab, ob chav servo siab - tshuab ceev
Dimension	L1260 x W 1015 x H 1560 mm	L1580xW1120xH1790 mm

Cov Khoom Paub meej

Ua ntej ntog los ntawm qhov hnyav hopper rau hauv lub hnab, cov khoom siv dhau los ntawm kev qhia trough thiab cov khoom siv tsis zoo los txo qhov cuam tshuam ntawm cov khoom, tiv thaiv cov khoom tawg yooj yim los ntawm kev tawg, thiab txhim kho qhov zoo ntawm lub ntim.

Lub touchscreen interface muab kev ua haujlwm rau kev teeb tsa cov khoom lag luam, cov ntaub ntawv tso tawm, ceeb toom yuam kev, thiab cov ntaub ntawv teev cia, ua kom yooj yim rau kev khiav lag luam thiab kev tswj hwm ntau lawm thiab ua kom pom kev tswj xyuas.

Los ntawm kev tswj cov zaj duab xis stretching ntev los ntawm servo tsav, qhov loj ntawm txhua lub hnab yog zoo ib yam, tsis txhob ntim cov khoom tsis xws luag los ntawm cov yeeb yaj kiab tsis sib xws.

Ob leeg longitudinal thiab transverse sealing yog nruab nrog kev tswj qhov kub thiab txias thiab kev hloov siab ua haujlwm, uas tuaj yeem ua kom zoo raws li cov ntaub ntawv ntim zaj duab xis sib txawv kom ntseeg tau tias ruaj khov thiab zoo nkauj.

Lub tuam txhab qhia

Peb yog cov chaw tsim khoom & cov chaw tsim khoom ntim tshuab & ntim zaj duab xis nyob hauv Guangzhou, Suav. Peb tau tshwj xeeb hauv kev tsim cov tshuab ntim khoom rau 16 xyoo. Lub tshuab & zaj duab xis nyob rau hauv lub hom ntawm Western Packing yog dav siv nyob rau hauv ntim khoom noj, tshuaj, kho vajtse, tshuaj txhua hnub, electronics, txhua hnub yuav tsum tau, thiab lwm yam. Peb lub tuam txhab muaj ib tug kws, paub txog R & D pab neeg muab kev pab txhawb nqa rau peb. Peb muaj kev paub txog kev ntim cov kev daws teeb meem thiab muag cov khoom rau cov neeg siv khoom thoob plaws ntiaj teb. Peb tau cog lus tias yuav muab cov khoom zoo tshaj - thiab xa khoom sai ntawm tus nqi sib tw thiab tsim nyog.
